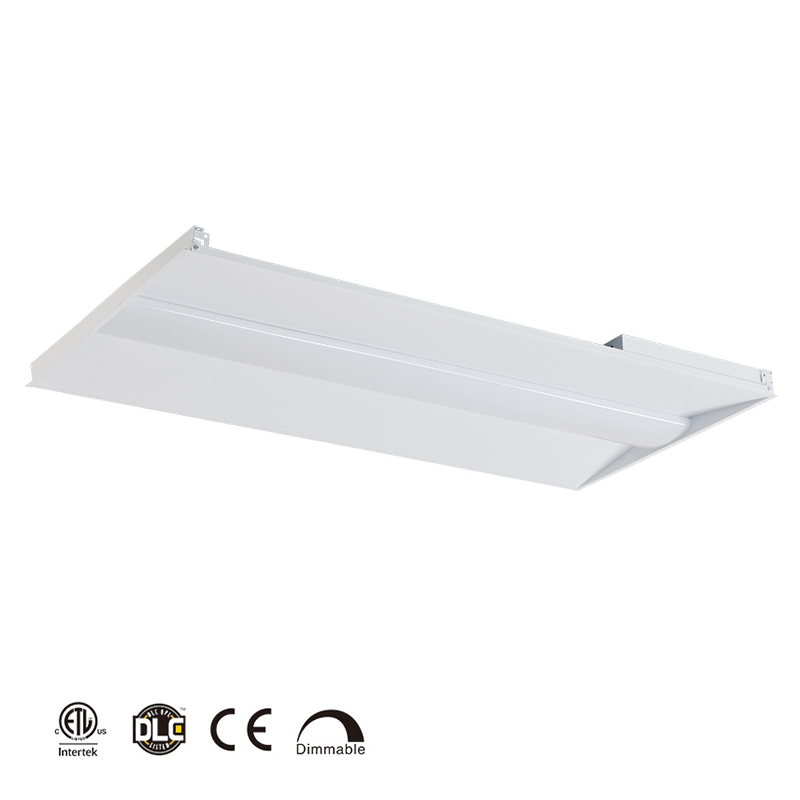

LED TROFFER HG-L249B-24-30W

这里可以自定义设置

B站不支持收货地址

B站不支持库存规格

Model: HG-L249B-24-30W

MOQ: 100PCS

Place of Origin: China

Delivery Time: 30-35 Working days

Start Port: Zhong Shan Port

Certification: UL /CUL, ETL /CETL, SAA, CE

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

该产品后台详情无内容

Product discription

◕ Osram, Philips, Tridonic or meanwell LED driver for 120V-277V/60Hz, 347V/60Hz, 240V/50Hz

◕ Ideal or WAGO UL/CUL approved quick disconnector VDE approved terminal block

◕ Everlight or Samsung LED Chips

Applications

Electrical Component

◕ Osram, Philips, Tridonic or meanwell LED driver for 120V-277V/60Hz, 347V/60Hz, 240V/50Hz
◕ Ideal or WAGO UL/CUL approved quick disconnector VDE approved terminal block
◕ Everlight or Samsung LED Chips

Specification

◕ Die formed of 0.5mm cold-rolled steel body
◕ All steel surface are painted after fabrication with high gloss backed white matte powder
◕ High-diffusion light-milky PC diffuser
◕ Fully recessed luminaire fits standard T-Grid ceilings.

OPTION

◕ Available for dimmable version
◕ Available for emergency version
◕ Available for installing with sensor

Application

◕ Shop / School

◕ Office / Hotel

◕ Conference Room / Hospital

Technical Data

MODEL	WATTS	LUMEN	LED TYPE	LAMP SIZE(L X W X H )	PACKAGE SIZE	PCS/CTN
HG-L249B-24-30W	30W	3750 LM	SMD 2835	1213x603x45mm	645x105x1250mm	2
HG-L249B-24-40W	40W	5000 LM	SMD 2835	1213x603x45mm	645x105x1250mm	2
HG-L249B-24-50W	50W	6250 LM	SMD 2835	1213x603x45mm	645x105x1250mm	2

MODEL	WATTS	LUMEN	LED TYPE	LAMP SIZE(L X W X H )	PACKAGE SIZE	PCS/CTN

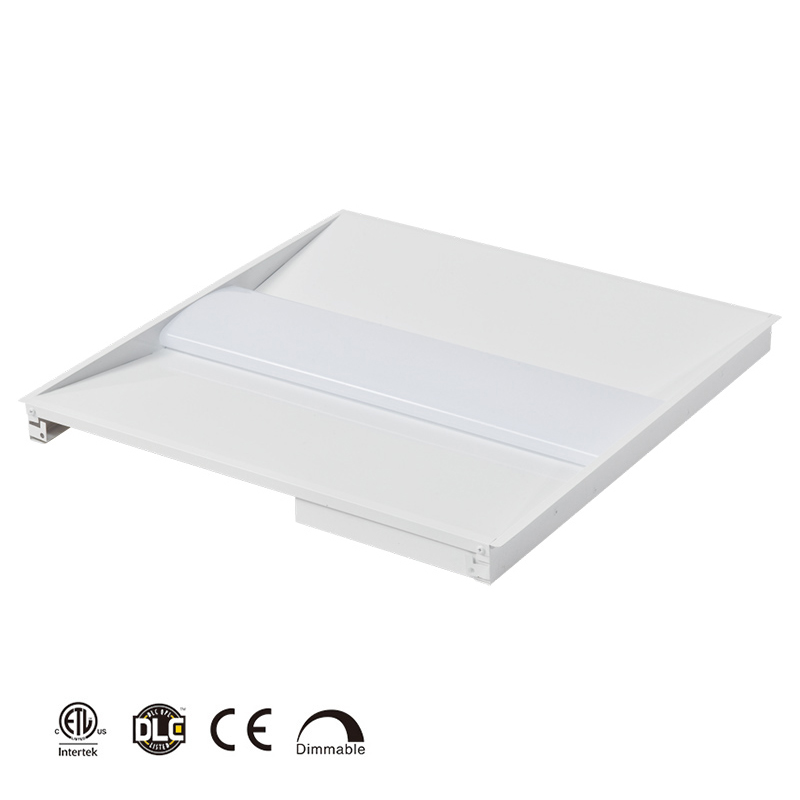

HG-L249B-22-20w	20W	2500 LM	SMD 2835	603x603x45mm	645x105x650mm	2
HG-L249B-22-30w	30W	3750 LM	SMD 2835	603x603x45mm	645x105x650mm	2
HG-L249B-22-40w	40W	5000 LM	SMD 2835	603x603x43mm	645x105x650mm	2
