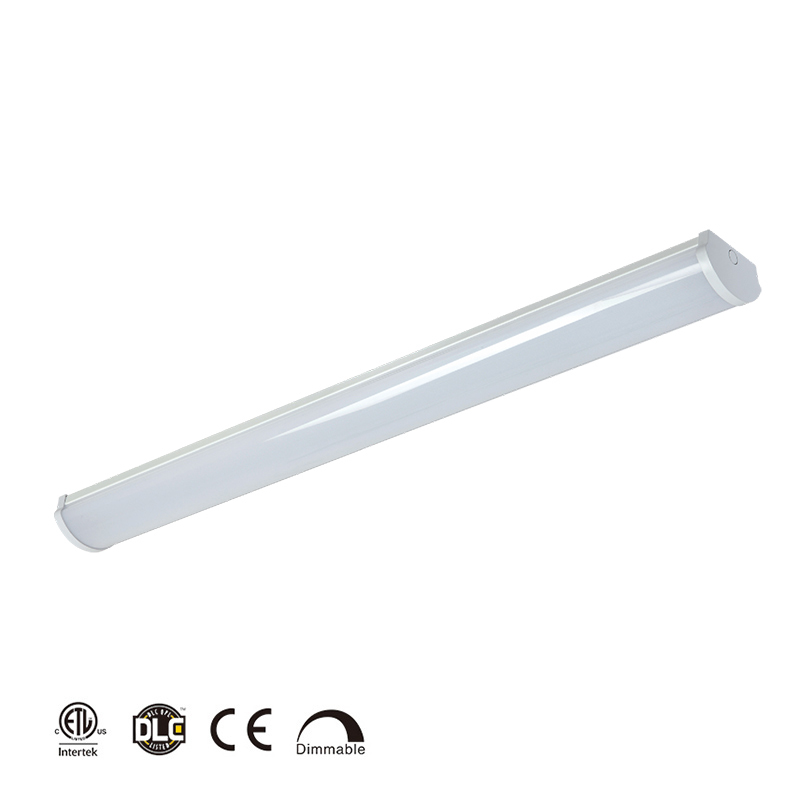

LED LINEARLIGHT C1801-25W/2ft -17-18

这里可以自定义设置

B站不支持收货地址

B站不支持库存规格

Model: C1801-25W/2ft

MOQ: 100PCS

Place of Origin: China

Delivery Time: 30-35 Working days

Start Port: Zhong Shan Port

Certification: UL /CUL, ETL /CETL, SAA, CE

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

该产品后台详情无内容

Product discription

◕ Osram, Philips, Tridonic or meanwell LED driver for 120V-277V/60Hz, 347V/60Hz, 240V/50Hz

◕ Ideal or WAGO UL/CUL approved quick disconnector VDE approved terminal block

◕ Everlight or Samsung LED Chips

Applications

Electrical Component

◕ Osram, Philips, Tridonic or meanwell LED driver for 120V-277V/60Hz, 347V/60Hz, 240V/50Hz
◕ Ideal or WAGO UL/CUL approved quick disconnector VDE approved terminal block
◕ Everlight or Samsung LED Chips

Specification

◕ Die formed of 0.5mm cold-rolled steel body
◕ All steel surface are painted after fabrication with high gloss backed white coated powder
◕ High reflectance backed white acrylic paint finished
◕ High-diffusion light-milky PC diffuser

OPTION

◕ Die formed of 0.5mm cold-rolled steel body

◕ All steel surface are painted after fabrication with high gloss backed white matte powder painted.

◕ High-diffusion milky PC

◕ Fully recessed luminaire fits standard T-Grid ceilings.

Application

◕ All electrical components are ETL approved, Input Voltage from 120-277V

◕ Hongli / Mason/Zhongyang SMD2835 LED chips

◕ LED Driver: UL/CUL 120-277V 0-10V LED Driver

◕ 5 years warranty

Technical Data

MODEL	WATTS	LUMEN	LED TYPE	LAMP SIZE(L X W X H )	PACKAGE SIZE	PCS/CTN
C1801-25W/2ft	25W	2875 LM	SMD 2835	585X127X75mm	640x420x150mm	5
C1801-36W/4ft	36W	4140 LM	SMD 2835	1198x127x75mm	1215x420x150mm	5
C1801-30W/5ft	30W	3450 LM	SMD 2835	1488x127x75mm	1510x420x150mm	5
C1801-60W/5ft	60W	6900 LM	SMD 2835	1488x127x75mm	1510x420x150mm	5
C1801-80W/6ft	80W	9200 LM	SMD 2835	1788x127x75mm	1810x420x150mm	5

MODEL	WATTS	LUMEN	LED TYPE	LAMP SIZE(L X W X H )	PACKAGE SIZE	PCS/CTN
C1802-25W/2ft	25W	2875 LM	SMD 2835	585X126X68mm	640x390x170mm	5
C1802-36W/4ft	36W	4140 LM	SMD 2835	1198x126x68mm	1215x390x170mm	5
C1802-30W/5ft	30W	3450 LM	SMD 2835	1485x126x68mm	1510x390x170mm	5
C1802-60W/5ft	60W	6900 LM	SMD 2835	1485x126x68mm	1510x390x170mm	5
C1802-80W/6ft	80W	9200 LM	SMD 2835	1785x126x68mm	1810x390x170mm	5
